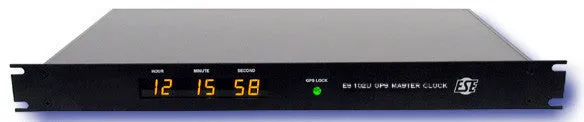

Name: ESE ES 102U GPS Based Time Code Generator (Options K and 10ns)
SKU: 457635

The ES-102U is a low-cost yet very accurate GPS Master Clock/Time Code Generator. The unit receives time and date information from Global Positioning System satellites and supplies this data to the user in the form of four (4) different types of time code ... SMPTE / EBU, ASCII (RS-232C & USB), ESE-TC89T and ESE-TC90T. Six amber LED displays (.55") provide a digital display of the Hours, Minutes and Seconds data. Two (2) One Pulse Per Second outputs and a GPS "Lock" output are also standard features. A twelve-channel receiver is employed that is capable of tracking up to twelve (12) satellites simultaneously, although reception of only one is required for time data to be output. Several options are available that allow the unit to meet most any demand required of a Master Clock or Time Code Generator

Features:

SMPTE/EBU, ASCII (RS-232C & USB) & ESE Time Code Outputs
Dual 1 PPS Output (20% and 50% Duty Cycles)
Rugged Rack Mount Enclosure
Six .56" Amber LED Displays
GPS "Lock" Indicator
< 500 Nano-Second Accuracy
Time Zone Offset
Automatic Daylight Savings Time Correction
Digital, Video & Analog Slave Clocks Available
Legally Traceable to UTC (Universal Coordinated Time)
Loss of GPS Signal Output
Indoor/Outdoor Antenna with 16' Cable
Options available: Ant, B(4), BBU, Black(1), DC, HR, J(3), K(8), P(1), RS(1), UL, W(1), 10nS
